SKU: MP-FUV-11

Fuvara Pipe (Sprinkler Pipe)

Name: Fuvara Pipe (Sprinkler Pipe)
Brand: Maharani Poly Plast
SKU: MP-FUV-11

Agricultural HDPE Fuvara sprinkler irrigation pipes fitted with welded quick-action coupler latch clamp joints for rapid field installation and uniform crop irrigation.

Material: High-Grade Agricultural HDPE Resin with UV Barrier

Sizes / Diameter: 63mm (2.5"), 75mm (3"), 90mm (3.5") Outer Diameter

Coil / Bundle Lengths: 6-Meter Standard Pipe Bars with Integrated Coupler & Clamp

Working Pressure: Class I (2.5 kg/cm²), Class II (3.2 kg/cm²), Class III (4.0 kg/cm²)

WhatsApp Inquiry

Tested to industrial standards

Product Overview & Features

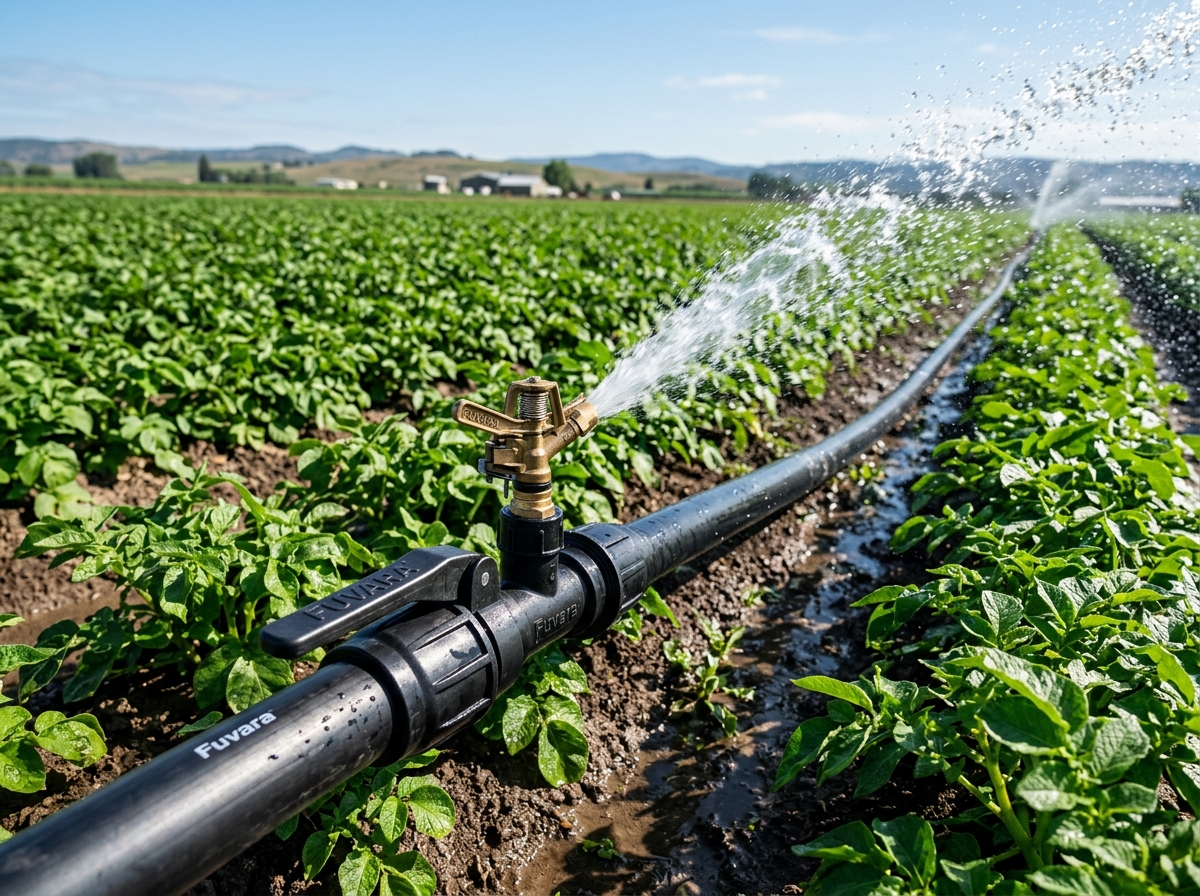

Maharani Poly Plast Fuvara (Sprinkler) Pipes are high-quality agricultural irrigation pipes manufactured from superior grade virgin HDPE resin. Specifically designed for sprinkler irrigation systems in arid and undulating farmland, each pipe is fitted with an integrated fusion-welded quick-action coupler and steel/plastic latch clamp for fast, leak-free connection across acres of farmland.

Key Performance Features

Quick-action coupler with rubber sealing ring enables rapid tool-free assembly
Lightweight pipe structure allows single-operator field relocation in minutes
Smooth internal bore ensures optimal hydraulic head and uniform sprinkler throw
UV stabilized formulation withstands blazing field sunshine without degradation

Typical Applications

Sprinkler irrigation for wheat, mustard, pulses, and vegetables
Undulating agricultural terrain with variable soil elevation
Temporary seasonal irrigation line relocation
Dust suppression in agricultural yards and construction zones

Technical Specifications

Standard Compliance	IS:14151 Part 1 & Part 2 Sprinkler Standards
Coupler Mechanism	Welded Quick-Lock Coupler with Steel / Plastic Latch
Working Pressure Class	Class I (2.5 kg/cm²), Class II (3.2 kg/cm²)
Standard Length	6 Meters per Rigid Bar
Nozzle Compatibility	Integrated Riser Fitting for Rotary Sprinklers
